Render views in third party apps

It is possible to render Ontime output views on any computer that can access Ontime over the network.
Aside from a web browser, you can do this using any third-party software that can render an HTML page, such as OBS, vMix, disguise or Touchdesigner.

Background colours, keying, and transparency

The timer view offer a customizable background colour — including transparency — via the key option.
See view configuration.

For views that do not explicitly offer a customizable key colour, you can customize the background (or other) colours by overriding CSS variables using code such as:

:root {
  --background-color-override: #00ff00;
}

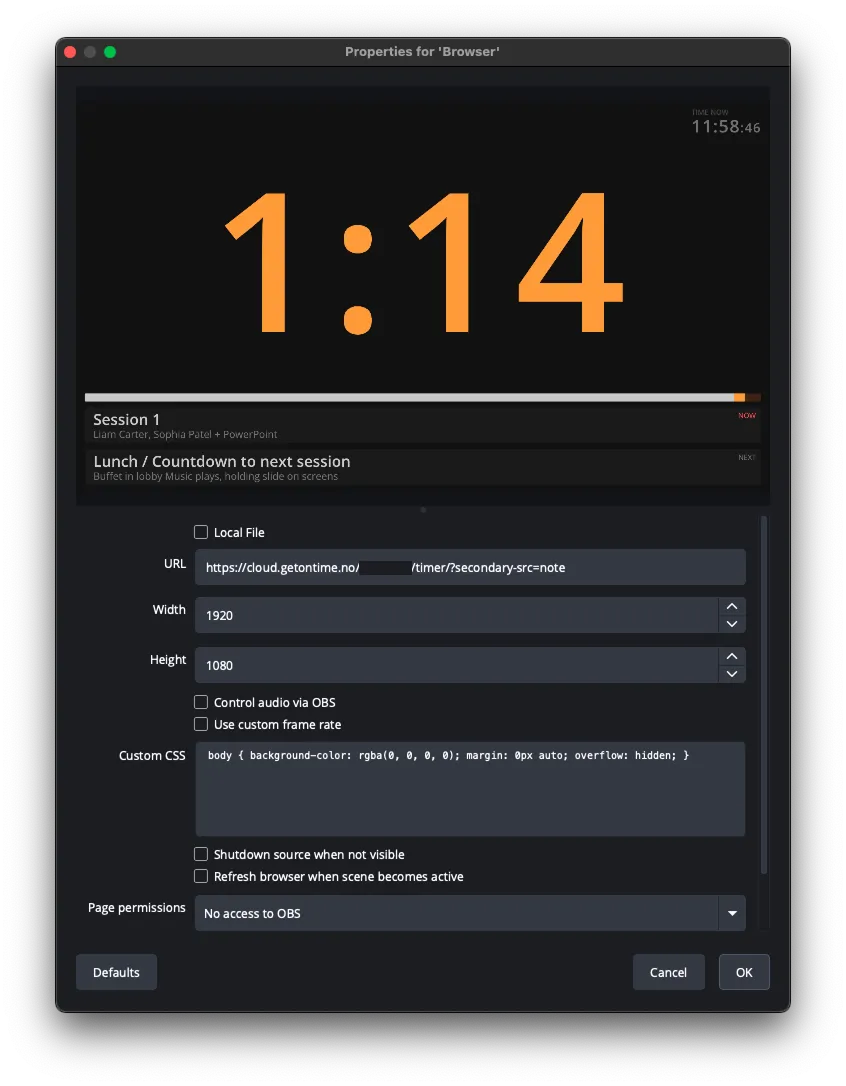

Example: Rendering a confidence monitor in OBS

You may need to distribute our stage timer view as a confidence monitor through your system, or consume it in a multiview.

In OBS you can use the Browser source. You would simply need to provide OBS with the link to the page with the options you need.

Ontime Cloud password

For users running Ontime from a password protected stage in Ontime Cloud, you wil need to create a link that contains authentication.

You can achieve this by

1. Navigate to the Editor -> Settings -> Sharing and reporting -> Share link
2. Select your target view or preset, and activate the Authenticate toggle
3. Click the Create share link button and provide the link copied to your clipboard to OBS

Rendering issues

We try to keep our compatibility targets as wide as possible.
However some software uses older browser versions and may not be able to render Ontime’s views. In those cases you will often see a blank page.

Custom views may be a good alternative here.
With custom views you can leverage Ontime’s data and distribution to make a simple page that could have a wider browser support.
